Carriage House Stamped Model 5950

Experience the elegance of simplified carriage-style garage doors. Carriage-house stamped series of garage doors capture the same premium aesthetics found in our top-of-the-line models, delivering the desired features you seek in a garage door at a price that fits your budget.

The Model 5950 Steel Long Panel Carriage House Door brings classic carriage house style together with the solid feel of modern steel. It’s built from 25-gauge galvanized steel—pretty tough stuff—and those 2-inch thick panels come embossed with a woodgrain pattern that actually looks and feels like real wood. The long panel design gives it a bit of extra elegance and depth, too. On the outside, you can pick from classic colors like white, almond, sandstone, brown, or desert tan. Inside, the door’s always finished in crisp white, so it looks sharp from every angle.

Product Description : Model 5950 Steel Long Panel Garage Door

This door’s made to last. The ends and center get reinforced with 20-gauge steel stiles, wrapped right around and locked in place using a Tab-Lock system plus heavy-duty adhesives. The panels fit together with tongue-and-groove joints, which help block out the weather and keep everything snug. Galvanized trussing adds support, depending on the size and use of the door.

There’s no insulation, but every bit of hardware is beefed up: 14-gauge hinges and top fixtures, 13-gauge on the bottom, and 10-ball bearing rollers that keep things moving smoothly for years. The spring counterbalance system uses oil-tempered torsion springs rated for at least 10,000 cycles, tuned specifically for each door’s weight and balance.

If you want to dress things up, you’ve got options: Black Spade decorative hardware, inside or outside locks, and all sorts of window lites—single pane, glue chip, or tinted glass, with or without decorative inserts. The door comes with a full-width double vinyl floor seal, and if you want even more weather protection, you can add header and jamb seals.

Garage Door Features: Model 5950

2” thick door sections in a pan-type product

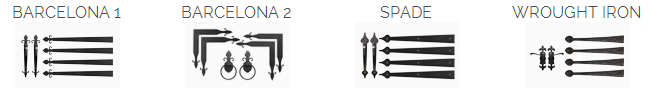

One set of Spade decorative hardware is standard for all carriage style garage doors; optional Barcelona or Wrought Iron designs replicate an old-world look of wood garage doors

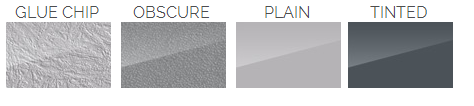

Glazing options include plain, obscure, tinted, and glue chip glass with five optional insert designs

Available Garage Door Colors: Model 5950

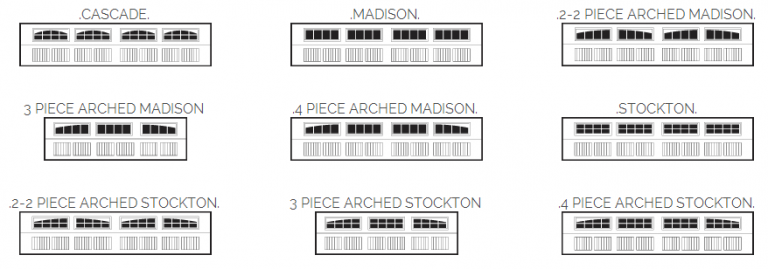

Available Window Inserts: Model 5950

Garage Door Exterior Hardware: Model 5950

Garage Door Designer Lites: Model 5950

SPEC SHEET: Carriage House Stamped Model 5950
