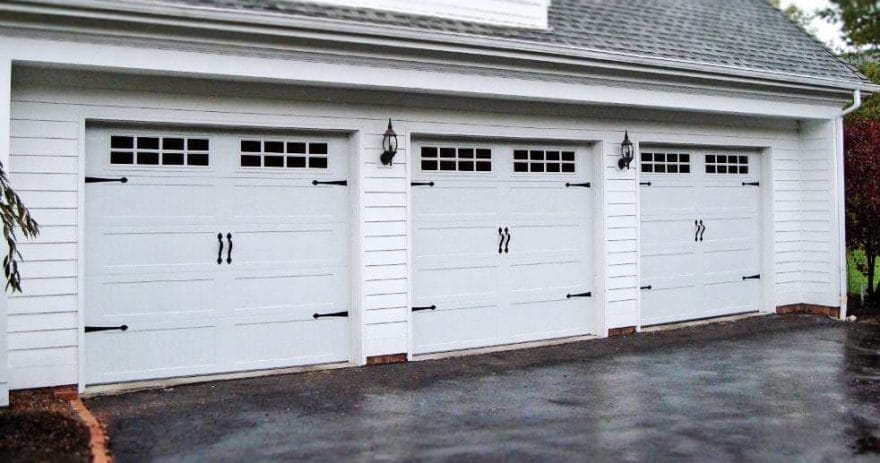

Carriage House Stamped Model 5916

Our line of carriage house stamped doors embodies the exceptional charm and character of rustic craftsmanship. These overhead garage doors are meticulously crafted with handcrafted details and a deeply embossed wood grain finish, flawlessly capturing the essence of traditional carriage-style doors. They bring unparalleled warmth and individuality to any home, infusing it with timeless appeal.

Carriage House Stamped 5916 represents a distinct model or variation in the Carriage House Stamped series of garage door designs. It merges the timeless allure of carriage house aesthetics with stamped patterns and details on the surface. The number “5916” identifies this specific model, suggesting potential exclusive features, dimensions, or materials specific to Carriage House Stamped 5916.

Product Description : Model 5916 Steel Long Panel Carriage House Garage Door

The Model 5916 Steel Long Panel Carriage House Door combines high-end curb appeal with rugged construction and exceptional thermal efficiency. Featuring monolithic plank sections in 18″ or 21″ heights, this 2″ thick garage door is crafted with a deep-draw 26-gauge galvanized steel exterior, detailed with a woodgrain texture and long panel carriage house embossing. It comes finished in a selection of classic colors—white, almond, sandstone, brown, or desert tan—with accent options including Cedar, Mahogany, Dark Oak, and Light Oak to match various home styles.

Inside, the door is reinforced with a 27-gauge galvanized steel skin, coated in a white polyester primer and topcoat. Between the steel skins lies a foamed-in-place urethane core, providing an R-value of 16.55 for excellent insulation and energy savings. The tongue-and-groove joint design with a full thermal break ensures tight sealing and improved resistance against outdoor elements. Heavy-duty galvanized end stiles, center hinge reinforcement plates, and precision hardware complete the sturdy build, while optional decorative Black Spade hardware offers a classic carriage house touch.

Built for smooth operation and long-term performance, the Model 5916 includes graduated heavy-duty hinges, 10-ball bearing rollers, and oil-tempered torsion springs tailored to the exact weight and dimensions of the door. The spring system is ANSI 102 compliant and rated for a minimum of 10,000 cycles. Additional features include galvanized trussing, a full-width double vinyl floor seal, and optional header and jamb weather seals for enhanced protection. Window lites in ½” insulated, glue chip, or tinted glass are also available, with the option to add decorative inserts.

Garage Door Features: Model 5916

1-3/8” polystyrene insulation with a vinyl back cover
R-value: 7.94 (R-value testing is in accordance with ASTM C518 standards)
2” thick door sections in a pan-style garage door product
One set of Spade decorative hardware is standard for all carriage house garage doors; optional Barcelona or Wrought Iron designs replicate an old-world look

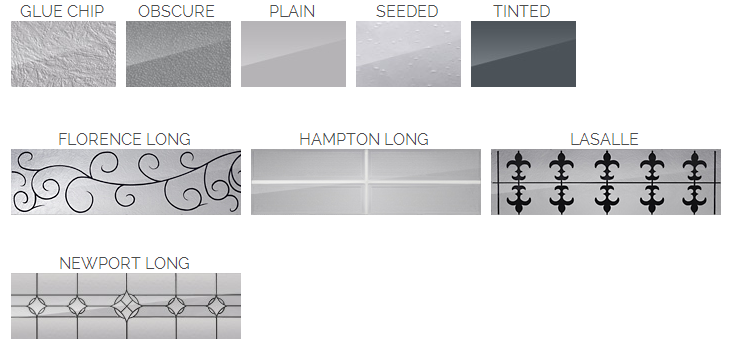

House garage door glazing options include plain, obscure, tinted, and glue chip glass with five optional insert designs
