Carriage House Overlay Steel Garage Doors Model - 5800

Durable,​‍​‌‍​‍‌​‍​‌‍​‍‌ energy-efficient and attractive, the Model 5800 Overlay Carriage House Door is the just-right combination of rustic charm and modern features. Along with the 2-1/2″ thick monolithic plank sections, this strikingly designed garage door sports a vertically beaded fiberglass face with a wood grain texture on Poly Accent boards and the base made from a rugged steel–all these elements not only harmonize to create a classic carriage house look but also assure lasting use. Moreover, the Model 5800 is available in timeless factory-filled colors such as white, almond, and sandstone and thus, it can present both a beautiful look and a low-maintenance performance to the owners.

The inside face is made of 27-gauge galvanized steel, which is coated with a white polyester primer and topcoat, thus providing a clean and attractive look. In addition, the door is filled with 1-13/16″ of CFC-free polystyrene that is bonded between the two skins and thus, it has an R-value of 10.67, which means that the door is thermally efficient. Not only are the rails tongue-and-groove but the structure also has galvanized end caps and full-length reinforcement plates at each hinge point, which makes it strong and durable in the long ​‍​‌‍​‍‌​‍​‌‍​‍‌run.

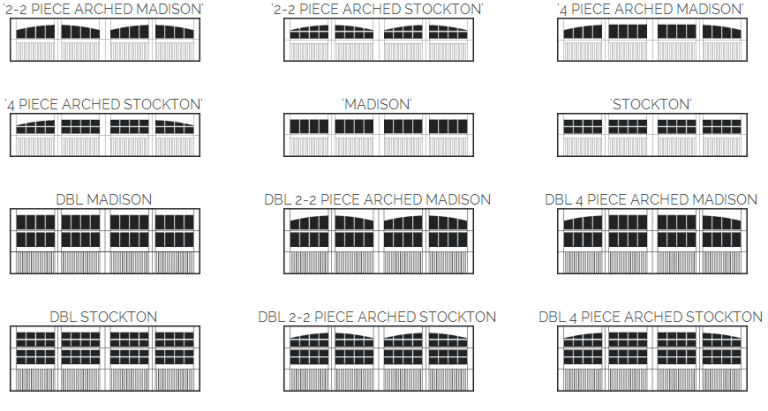

For smooth and quiet operation, the Model 5500 includes heavy-duty galvanized hinges, top and bottom fixtures, and rollers with 10 ball bearings and casehardened steel tires. Its oil-tempered torsion spring system is custom-engineered to the exact door size and weight and rated for at least 10,000 cycles, meeting ANSI 102 standards. Additional features include a full-width double contact vinyl floor seal, optional jamb and header weather seals, and a selection of locking mechanisms. Decorative Black Spade hardware (with four straps and two handles) and a variety of optional window lites—including faux, polycarbonate, or insulated glass—allow for further customization.
